AirPlay

OrgZ streams to AirPlay receivers directly - HomePods, Apple TVs, AirPort Expresses, and third-party AirPlay speakers. No iTunes, no Bonjour service, and no helper app: discovery and streaming are built in, on every platform OrgZ runs on.

Picking a speaker

The speaker icon next to the volume slider (in the main window and in the mini-player - it is the same picker) lists every output OrgZ can see, grouped by where it came from. AirPlay receivers appear under AirPlay as they answer mDNS.

  • Tick a device to send audio to it, untick it to stop.
  • Each row has its own volume slider, independent of the master volume.
  • You can tick more than one. Audio is fanned out to every ticked output at once - laptop speakers plus the kitchen HomePod, for instance.
  • A receiver seen by name but not yet resolved to an address shows as unreachable and can't be ticked, rather than silently swallowing the audio.

A small play or pause glyph on a row means the receiver told the network it is already busy. Ticking a busy speaker asks first (Take Over), because an AirPlay receiver hands itself to a new session without a word to whoever was using it.

Two outputs, one song, no echo

An AirPlay receiver is handed audio around two seconds before it plays it; a sound card plays it almost immediately. When both are ticked, OrgZ delays the faster output to match, so the same song doesn't arrive twice from two rooms. The delay is carried across track boundaries, so gapless stays gapless.

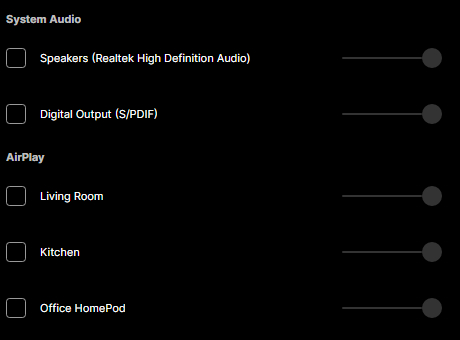

The output picker

Passwords

A receiver with Require Password set for speaker access (the Home app's setting) announces that fact, and OrgZ asks for the password before it plays - also when the receiver rejects one it was given.

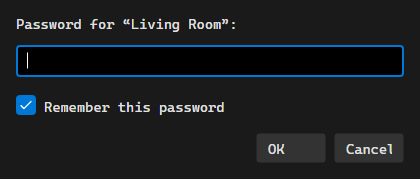

Entering a receiver password

Tick Remember in the prompt to keep it. Passwords go to the operating system's secret store (DPAPI on Windows, Keychain on macOS, libsecret on Linux), never to settings.json. If the system has no secret store, OrgZ keeps the password for the session only and says so rather than pretending to have saved it.

What the speaker shows

While a session is up, OrgZ pushes the same now-playing information an iPhone does: title, artist, album, elapsed/total time, and the cover art (resized to 600×600 before it goes out, which is what the reference sender does and what a speaker's display can actually use).

Controls come back the other way. OrgZ publishes the DACP control endpoint iTunes has always used, so the buttons on a HomePod tile - or in Control Centre, or on the speaker itself - drive playback here: play, pause, play/pause toggle, stop, next, previous. Volume changed on the speaker is followed by the row's slider in the picker rather than fought over.

AirPlay 1 and AirPlay 2

OrgZ speaks both, and picks per receiver:

  • AirPlay 1 (RAOP) - AirPort Expresses and most third-party speakers: RTSP handshake, RSA-wrapped AES key, ALAC audio over RTP.
  • AirPlay 2 - HomePods and modern Apple hardware: transient pairing, a plist-negotiated setup, and ALAC frames individually sealed with ChaCha20-Poly1305.

For timing, a receiver that advertises PTP gets PTP (joining its timing group is what makes it treat the stream as a real AirPlay 2 source); everything else gets the NTP model.

Troubleshooting

Symptom Likely cause
No AirPlay group in the picker Discovery is a background mDNS sweep - give it a couple of seconds after opening the picker. mDNS also does not cross subnets or most guest/VLAN boundaries.
Device listed as "unreachable" It was announced but its address hasn't resolved yet, or it is asleep.
Asked for a password repeatedly The password was refused; the prompt reopens with an empty box so you can retype it.
Speaker plays but shows nothing / no controls The receiver dropped the metadata push. Untick and re-tick the device to rebuild the session.
A HomePod stutters or refuses to start Ports 319/320 (PTP) may be blocked on your network. Setting AirPlay.EnablePtp to false in settings.json forces the older NTP timing path.
